Soft Start for RV AC: How to Install and Why You Need It

An air conditioner tripping the breaker usually happens because the compressor requires a massive burst of startup power that exceeds what your circuit can provide. After living on the road full-time since 2009, I have dealt with this frustration more times than I can count. Here is a piece of advice you can use right now: check your extension cord. If you are moochdocking and using a standard orange household cord, you are likely starving your unit of voltage, which forces the amperage higher and trips the breaker faster. Always use a 10-gauge, heavy-duty cord if you must run your AC from a distance.

I spend most of my year either off-grid or moochdocking on family property, where power is often limited and precarious. Last summer, while staying in the Okanagan heat, I finally stopped the cycle of resetting breakers by installing a SoftStartRV. This specific soft start device smooths out that initial power spike, allowing the unit to start without the violent thump that kills generators and trips house breakers. It has fundamentally changed how I manage my power while living in my van and RV.

What Is a Soft Start for RV AC?

Air conditioner tripping breaker? RV soft start fix

An air conditioner tripping the breaker usually happens because the compressor requires a massive burst of startup power that exceeds what your circuit can provide. After living on the road full time since 2009, I have dealt with this frustration more times than I can count.

Here is a piece of advice you can use right now: check your extension cord. If you are moochdocking and using a standard orange household cord, you are likely starving your unit of voltage.

This forces the amperage higher and trips the breaker faster. Always use a 10-gauge heavy duty cord if you must run your AC from a distance.
What Is an RV AC Soft Start?

A soft start is a small device installed in your air conditioning unit that reduces the surge of power needed when the compressor starts.

Instead of demanding an abrupt burst of electricity, it gradually increases the voltage. This prevents your AC from tripping breakers or overloading a small generator.

Key Benefits for Off Grid Living

• Prevents Breaker Trips: Reduces the initial power spike significantly.

• Easier on Generators: Run your AC on a smaller 2000W unit without overload.

• Quieter Operation: Eliminates the loud kick sound when the compressor starts.

• Lower Energy Consumption: Reduces power draw when plugged into shore power.

Why Your RV AC Trips the Breaker Mid Cycle

Many RVers experience the AC running fine at first, but then it trips the breaker after a few minutes. This happens when the compressor cycles back on.

While the fan might run fine, that secondary surge when the compressor restarts can easily overload a household outlet or small generator.

If you are tired of the "AC dance" where you have to sprint to the breaker box every time the compressor kicks on, you can grab the SoftStartRV here. It is the exact tool I used to stop my parents' house breakers from tripping so I could finally stay cool in their driveway without the stress.

Solving the Moochdocking Power Struggle

Last summer, while staying in the Okanagan heat, I finally stopped the cycle of resetting breakers. I spend most of my year either off-grid or moochdocking on family property where power is often limited.

When I parked in my parents' driveway, I thought a decent extension cord would be enough. I was wrong. Every time the air conditioner kicked on, it tripped the house breaker.

After multiple trips to reset it, I knew I needed a solution. That is when I decided to install a soft start for my RV AC.

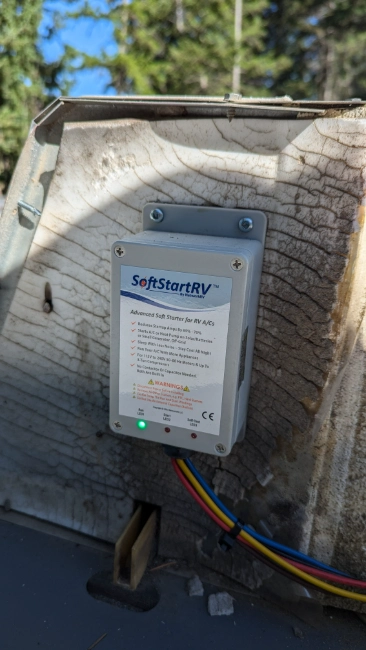

Installing a Soft Start for RV AC: My Experience

I was initially intimidated by the installation process. I am comfortable with RV maintenance, but electrical work can be daunting. Thankfully, the company I purchased from offered alive video chatto guide me through the installation. It was surprisingly easy, and if you are not confident with wiring, you can always hire a professional.

Watch a similar installation here.

Soft Start Installation Steps:

1. Turn off the power to your RV AC unit. Open the AC cover and locate the compressor wires. Connect the soft start unit according to the manufacturer’s instructions. Secure all wires and close the AC unit. Test the AC to ensure the installation is successful.

Turn off the power to your RV AC unit.

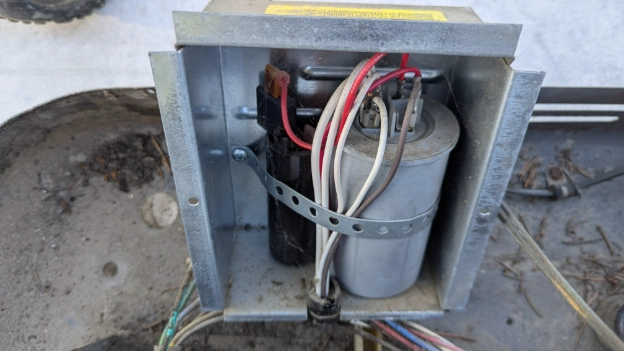

Open the AC cover and locate the compressor wires.

Connect the soft start unit according to the manufacturer’s instructions.

Secure all wires and close the AC unit.

Test the AC to ensure the installation is successful.

The Results: More Cooling, Less Hassle

Once the soft start was installed, the difference was immediate. My AC ran smoothly without tripping the breaker, and it was noticeably quieter. Even better, by the end of the summer, my parents saw a drop in their electric bills since the AC was no longer pulling excess power.

Next Project: Soft Start for My Camper Van

After seeing how well it worked in my RV, I am now installing a soft start in my camper van. I will be spending the summer Moochdocking in the Okanagan heat, and running my AC is a must. A soft start will allow me to keep cool without overloading my generator.
